ZKTECO GUARD TOUR SYSTEM
A digital solution designed to track security personnel patrols using RFID technology to ensure accountability
ZKTECO GUARD TOUR SYSTEM SERIES

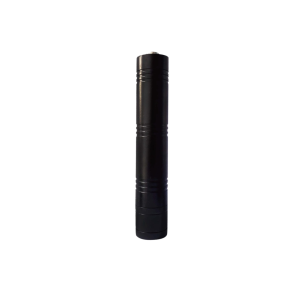

ZKTECO P10 Patrol Stick
Dimension: 158*26(mm) Weight: 125g
Read mode: RFID auto-induction
Read distance: 3-5 cm
Read prompt: Light+vibration
Capacity: 16MB, can store up to 57,000 records
Battery: 3.6V built-in rechargeable lithium battery, a full charge can support above 45 days each 200 readings per day
Communication: USB, no need install USB driver
Working Temperature:-20°C-80°C
The machine fell from a height of 1 meter without damage.Patrol software downloads are used directly without installation

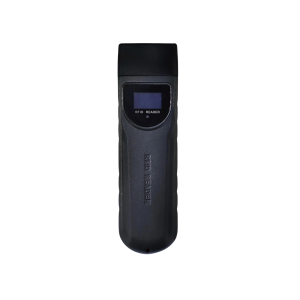

ZKTECO P20 Patrol Stick
- Dimension: 165*42*25(mm)
- Weight: 300g
- Read mode: RFID auto-induction, no need to touch
- Read distance: 3-5cm
- Read prompt: Light + beep or vibration, can be set in software
- Capacity: 16MB, can store up to 57,000 records
- Battery: 3.6V built-in rechargeable lithium battery, a full charge can support above 40 days each 200 readings per day
- Communication: USB, no need to install USB driver
- Working Temperature:-20°C -80 C
- 1 inch LCD screen
- The machine fell from a height of 1 meter without damage.
ZKTECO P30 Patrol Stick
Dimension: 158*26(mm) Weight: 125g
Read mode: RFID auto-induction
Read distance: 3-5 cm
Read prompt: Light+vibration
Capacity: 16MB, can store up to 57,000 records
Battery: 3.6V built-in rechargeable lithium battery, a full charge can support above 45 days each 200 readings per day
Communication: USB, no need install USB driver
Working Temperature:-20°C-80°C
The machine fell from a height of 1 meter without damage.Patrol software downloads are used directly without installation

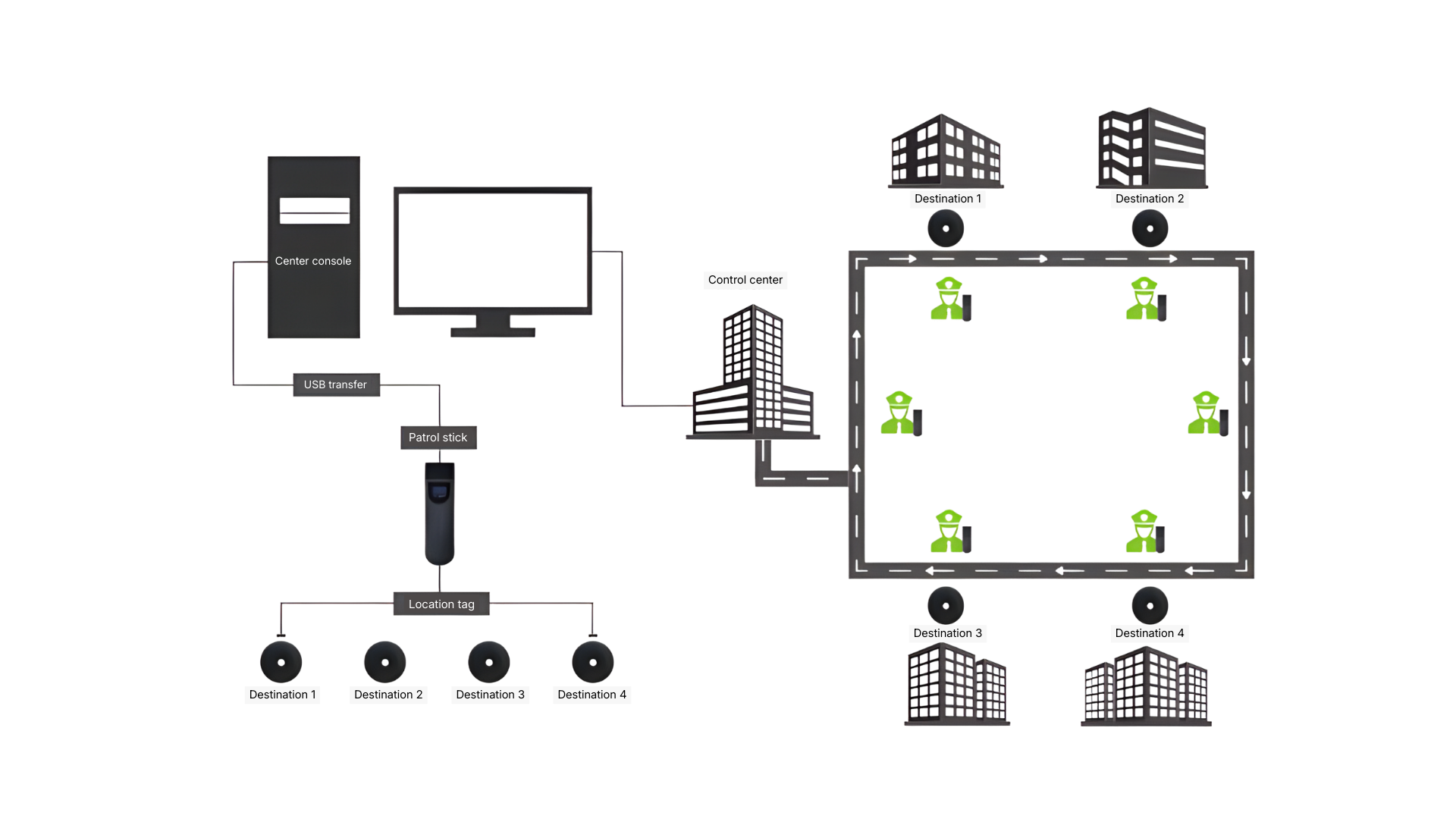

How Does This Guard Tour System Works?
Key Features & Benefits Of ZKTeco Guard Tour System
Automatic Checkpoint Logging
Each device uses RFID auto-induction technology to record every checkpoint’s ID, date, and time the moment a guard scans a tag. This ensures patrol data is accurate and verifiable without manual logging.
Long Battery Life
With an optimized power system, the P10 and P20 can last over 45 days on a full charge (based on 200 readings per day). This makes them ideal for daily patrols without frequent recharging.
Large Data Storage Capacity
Equipped with 16 MB of memory, the devices can store up to 57,000 patrol records, allowing for extended operation before data upload is required.
Rugged And Durable Design
Built for demanding environments, the devices are tested to withstand drops up to 1 meter. It also can operate reliably between –20 °C to +80 °C — ensuring stable performance both indoors and outdoors.
Easy Data Upload
Using USB plug-and-play communication, data can be transferred to management software instantly. This simplifies reporting and record-keeping for security managers.
Multi-Mode Feedback Indicators
Each successful checkpoint scan is confirmed through LED light and vibration prompts (and sound alerts for the P30 model). Therefore, giving guards real-time confirmation of proper tag reading.
Application Area
Hotel
Government Buildings
Apartment
Hospital
Campus
